The NEXSON JAPAN X1 (Single Needle Lockstitch Direct Drive Machine w/o Trim mer) is a new favourite among users of high-speed industrial machines. The 550 watts motor powers the machine enabling it to stitch at speeds as high as 5000 SPM (stitches per minute) while also making it durable. While its Up/down needle position feature facilitates corner stitching, pocket attaching, as well as collar stitching, the soft start speed feature avoids thread breakage while starting the stitching.
- Environment friendly power efficient direct drive in-built motor.
- Maximum speed: 5000 SPM.
- Maximum stitch length: 5 mm.
- Presser bar lift by knee: 5.5/13 mm.
- Programmable sewing speed
- Push button for half stitch function
- Copper winding motor.
- LED type needle light.
- Auto lubrication
- Needle position (Up/Down)
- Equipped with safety features like – motor pulley cover, finger guard and take up lever guard.
- Broader reverse lever for better grip
- Better position of touch panel for ease of use
Suitable for over edging of woven & non-woven fabric and sports wear
Suitable for light to medium fabric for stitching after cutting the edges of a fabric
| Model Number |
: |
NEXSON JAPAN X1 Single Needle Lock Stitch |
| Application |
: |
Stitching For L TO M Fabric |
| Stitch Type |
: |
SNLS-301 |
| Needle Light |
: |
LED Type-3 STEP |
| Feed Dog |
: |
2 |
| Feed Dog Height |
: |
4 |
| Tilt of Feed Dog Angle |
: |
2 mm |
| Differential Feed |
: |
0.7-2.0 mm |
| Needle Bar Stroke |
: |
6 mm |
| Needle System / Size |
: |
6000 SPM |
| Lubrication Type |
: |
2 |
| Hook Set |
: |
Automatic |
| Hook Set Oil Systems |
: |
Servo |
| Stitch Length Max. |
: |
Copper |
| Feed Type |
: |
Drop Feed |
| Pressure Foot Height |
: |
5.5/13 MM |
| Stitch Correction Key |
: |
Yes |
| Up / Down Needle Position |
: |
Yes |
| Sewing Speed Adjustments |
: |
Yes |
| Motor Type & Watt |
: |
Inbuilt Servo Motor & 550W |
| Sewing Speed |
: |
5000 SPM |
| Table Size |
: |
L 1066MM (42″) X W 558MM (22″) X T 35 MM |

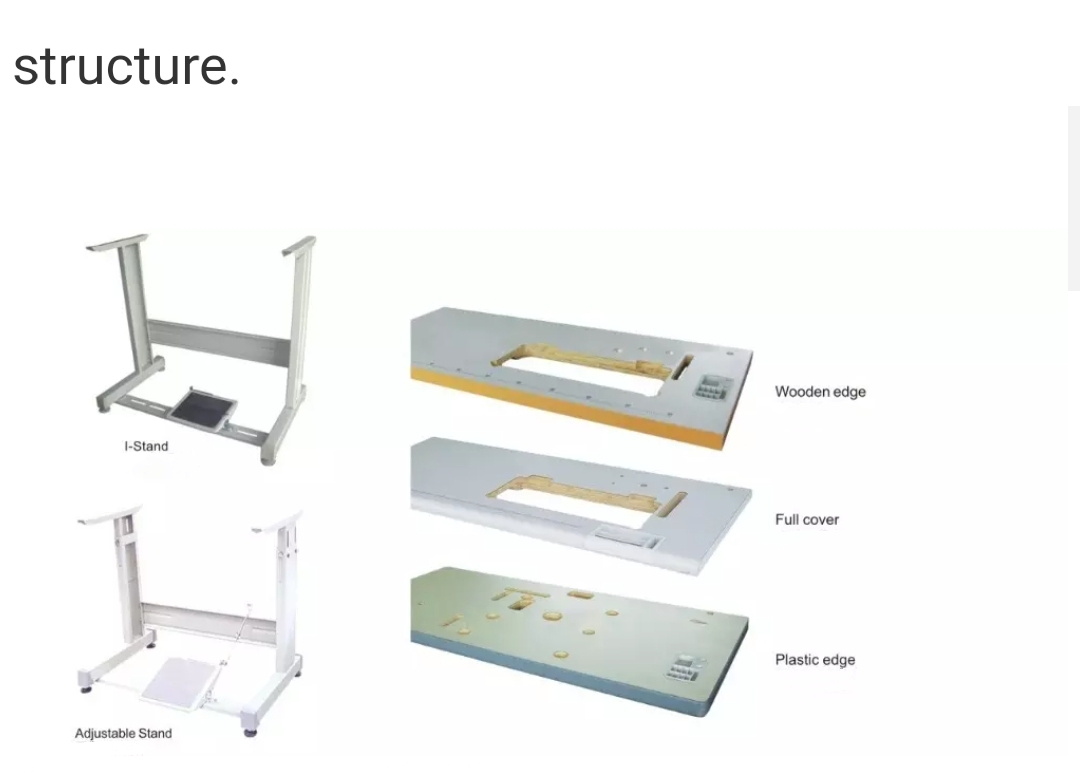

| Stand Type |
: |
I TYPE (Height Adjustable) |
