our most popular single needle machine now with our exclusive energy-saving direct drive technology. The era of motor belts and clutches is officially over, noisy motors are now a thing of the past. Replacing belts and the dust they create is history.
MACHINE APPLICATIONS:
- For sewing light to heavy-weight materials including cottons, knits, polyester, nylon, sheer fabrics and denim
- Suitable for stitching such products as blouses, shirts, men's, ladies and children's apparel, uniforms, overalls, lingerie, etc.
- Heavyweight fabrics such as jeans can be sewn by changing the needle plate, feed dog, foot, stitch regulator, hook and needle bar
MACHINE FEATURES:
- Fully automatic lubrication with recirculating high pressure pump and oil glass indicator
- Noise and vibration absorbing table mounting
- Treadle controlled foot lifter
- Automatic reverse
- Auto-lubrication rotary hook
- Under bed thread trimmer
- Electric thread clamp (holds thread after thread trim)

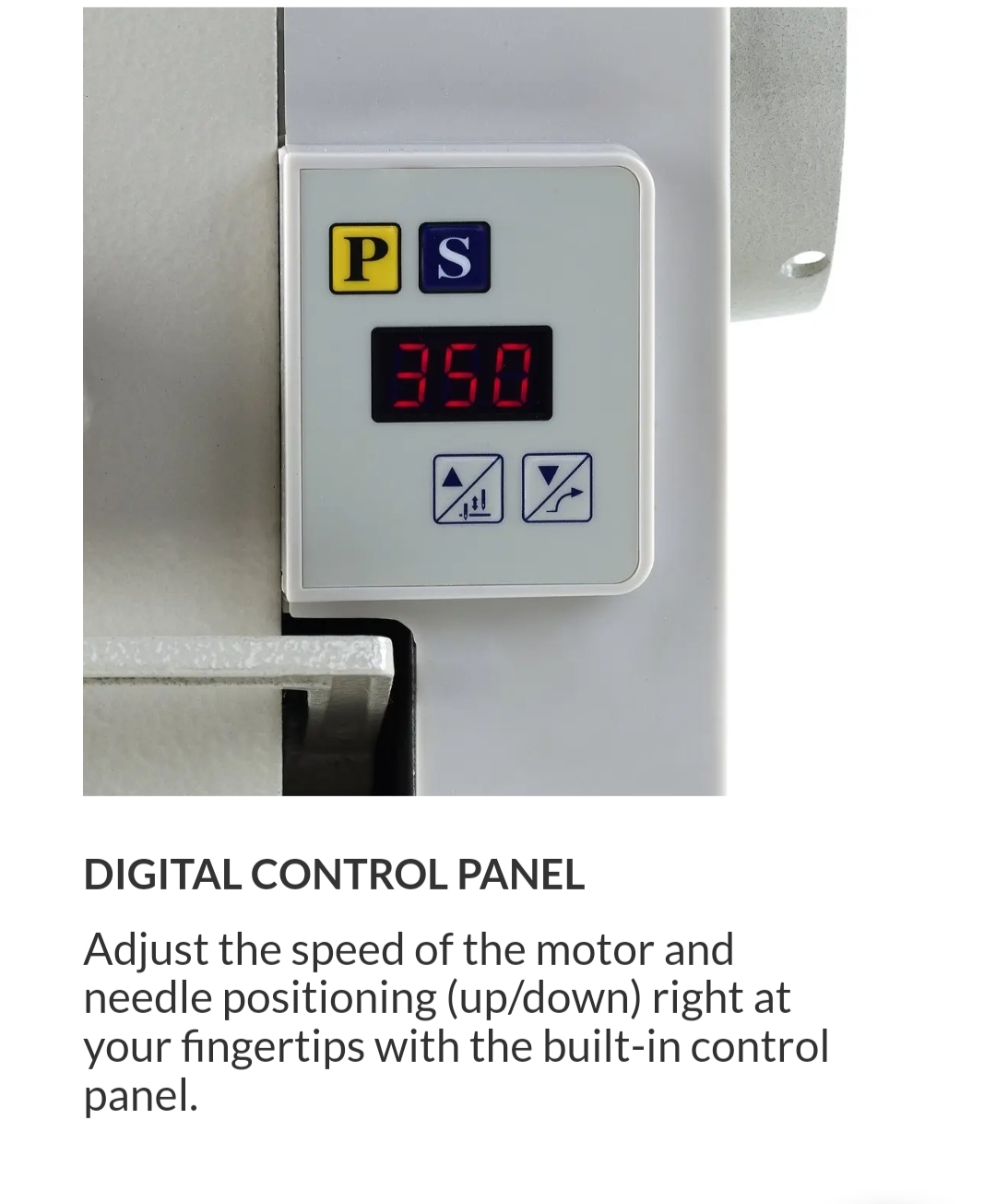

- Needle positioning
- Electric foot lift
- Stitch counter
- Built-in bobbin winder

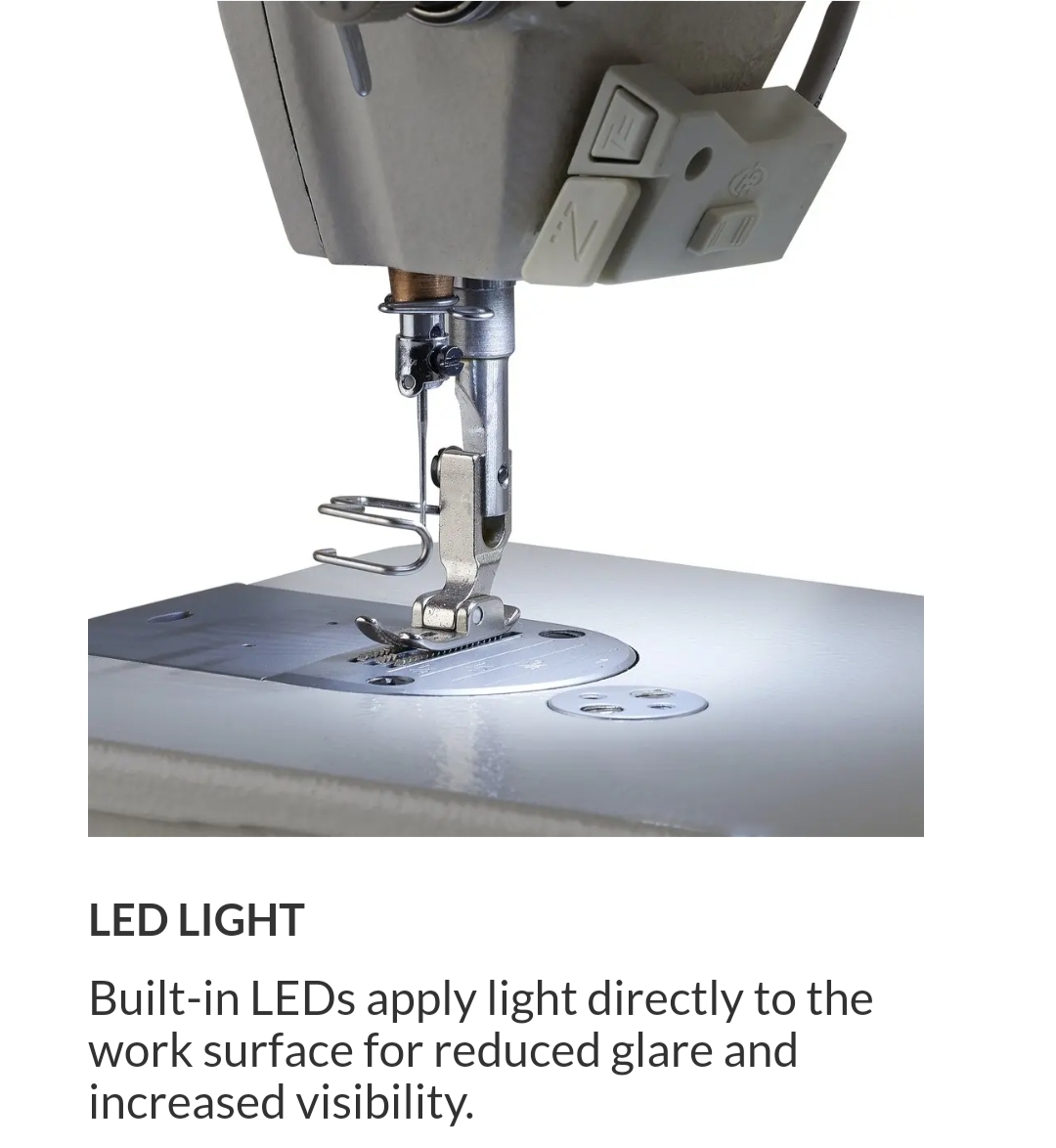

- Built -in LED light with level settings and on/off switch
- Built-in 3/4HP, 550 watt Direct Drive Motor (110v or 220v)
- 5,000-RPM high-speed operation
- Automatic lubrication with pump
- Instruction / parts manual included
- Tool kit, drawer, thread stand included
- Individually tested and sewn-off before shipping
MACHINE SPECIFICATIONS:
- Number of Needles: 1 (Single)
- Feeding Mechanism: Drop Feed
- Workspace: Standard Workspace
- Standard or Full Function: Automatic Functions
- Speed, Max (S.P.M.): 5000
- Motor Type: Direct Drive
- Clearance Under Presser Foot: 1/4" (6mm) , 1/4" (6mm)
- Stitch Length: 4 s.p.i. (6.2mm)
- Work Space: 10" (258mm)
- Needle: DBX1 (#9~#18)
- Bed Size: 7" x 18 7/8" (177mm x 477mm)
- Stitch Type: 301 , 301
- Needle Bar Stroke: 1 1/4" (31.8mm) , 1 1/4" (31.8mm)
THE ADVANTAGES OF A DIRECT DRIVE MOTOR:
- Silent and use up to 90% less power than clutch motors
- 1/3 lighter than clutch motors
- With a flick of the switch you can reverse motor rotation
- No parts to wear out or adjust
- Lightweight, precise, and reliable
The speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.
